Mega_Link for Radio Telemetry & Control Systems

• Space for 2nd interface module to support Dual Comms operation for applications requiring extra resilience.
• RS232/RS485 port for interface to PLC and SCADA equipment using industry standard fieldbus protocols.
• Digital and analogue exception reporting for alerting change of conditions past pre-determined thresholds.
• Variable scan update rate and PowerSave mode for extended low-power battery and solar panel operation.

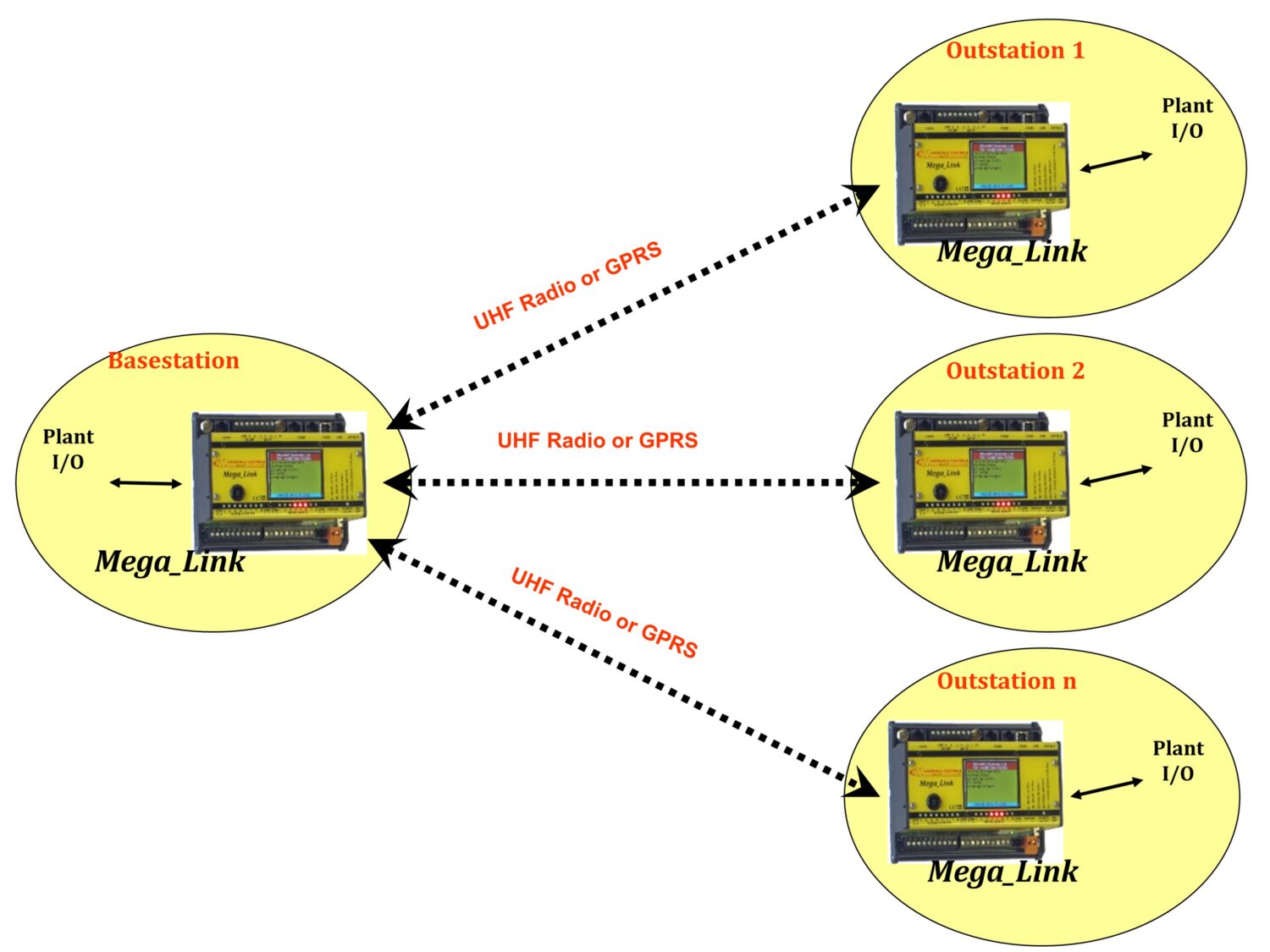

• Outstations can also be configured to operate in a repeater mode to relay two-way radio communications over extended distances and overcome otherwise challenging geographical features and locations.
• Versatile and user configurable; communications failure, battery condition and RSSI monitoring functions.
• Built-in colour LCD display and joystick user interface for easy monitoring of status and operation.
• USB programming port for connection to Windows based PC or tablet running GUI software for setting up system configurations, data routing tables, detailed status monitoring and diagnostics etc.

The Mega_Link part number is in the format 7600-a b c d

The choice of in-built power supply is defined by the suffix ‘a’ in the part number:

• a = 1: 12Vdc nominal (4….16Vdc)
• a = 2: 24Vdc nominal (12…36Vdc)
• a = A: AC mains (85…240Vac)
• a = B: Alkaline battery pack (4 x D cells)

The choice of communication interface modules built into COM1 is defined by the suffix ‘b’ in the part number:

• b = 0: None fitted
• b = 4: 458MHz Radio
• b = 8: 869MHz Radio
• b = G: GPRS radio modem

There is a similar choice of optional second communication interface module built into COM2, defined by the suffix ‘c’ in the part number.

Suffix ‘d’ of the part number defines whether or not the LCD colour display and joystick are fitted:

• d = 0: No display
• d = D: Display fitted

COM3 provides an RS232 or RS485 interface and these can be easily connected to third party equipment by using our DB9 – RJ45 Adaptors.
